Tine Grapple

Product added to Quote. View Quote

Free Shipping on select Jenkins Attachments

Thunderstruck Ag ships Jenkins Products only within Canada. For US customers, Jenkins products can be quoted/purchased at Jenkins Iron & Steel

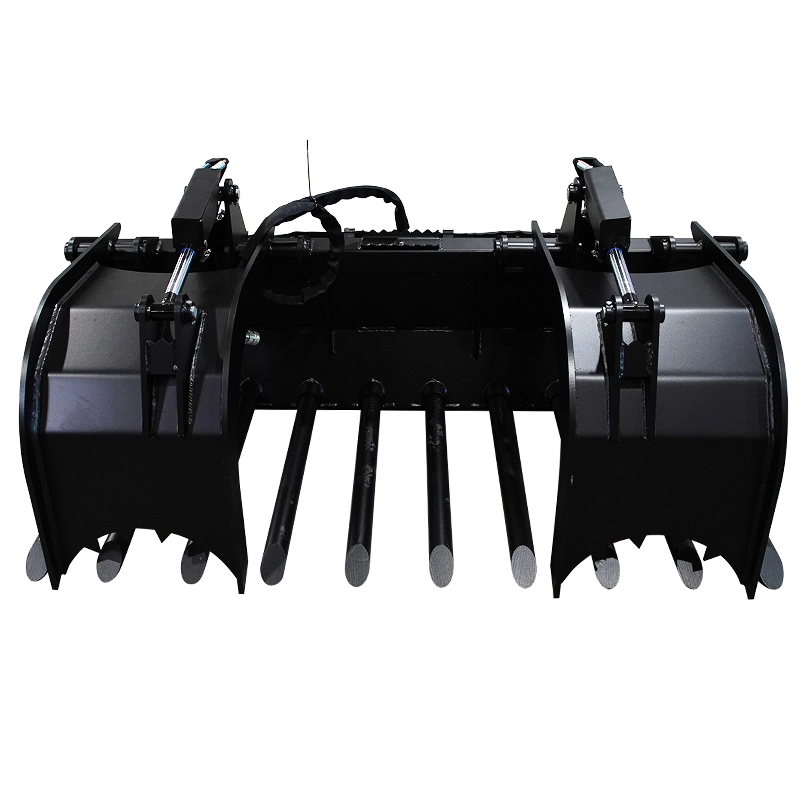

The Jenkins Iron &  Steel Tine Grapple is extremely versatile, from digging out roots and stumps to piling up brush, breaking up silage, to scraping up the barn floor, this grapple can do it all. Constructed of 2 ¼” hardened replaceable shaft, these commercial grade monsters are as heavy-duty as you can get in a round tine model and if you do get into trouble one bolt removes the damaged shaft for easy replacement. 4.25″ spacing ensures large debris will fall through easily. Grapples are available in 63″, 70″, 78″, 83″ and 88″ widths. Like all grapples, they have fully greaseable pivot points, cylinder covers and enclosed grapples. Dual cylinder grapples open and close together but close to different levels making them ideal for gripping and holding uneven loads in the bucket.

Benefits

  • Versatile
  • Indestructible

Features

  • 8″ spacing between tines
  • Cylinder covers included
  • Constructed of 2 ¾” hardened replaceable shaft
  • All attachments can be modified to fit a variety of tractor loader models
  • Various skid steer loader mounts available

Specifications

Width
63"
70"
78"
83"
88"
Height
32"
32"
32"
32"
32"
Tine Length
34.5"
34.5"
34.5"
34.5"
34.5"
Grapple Opening
36"
36"
36"
36"
36"
Weight
1,044 lbs
1,142 lbs
1,240 lbs
1,298 lbs
1,356 lbs

Compatible with

  • John Deere
  • Westendorf
  • Global
  • Euro
  • Koyker
  • New Holland
  • Kubota
  • Bobcat
  • & More
